Electronics Industry

Home|Industries|Electronics Industry

A wide range of plating types are used in the electronics industry. These include gold, electrolytic and electroless nickel, palladium nickel, tin, and ENIG plating. These plating techniques are used in the production of such products as hard disks, probe testers, PCBs, battery contacts and resistors.

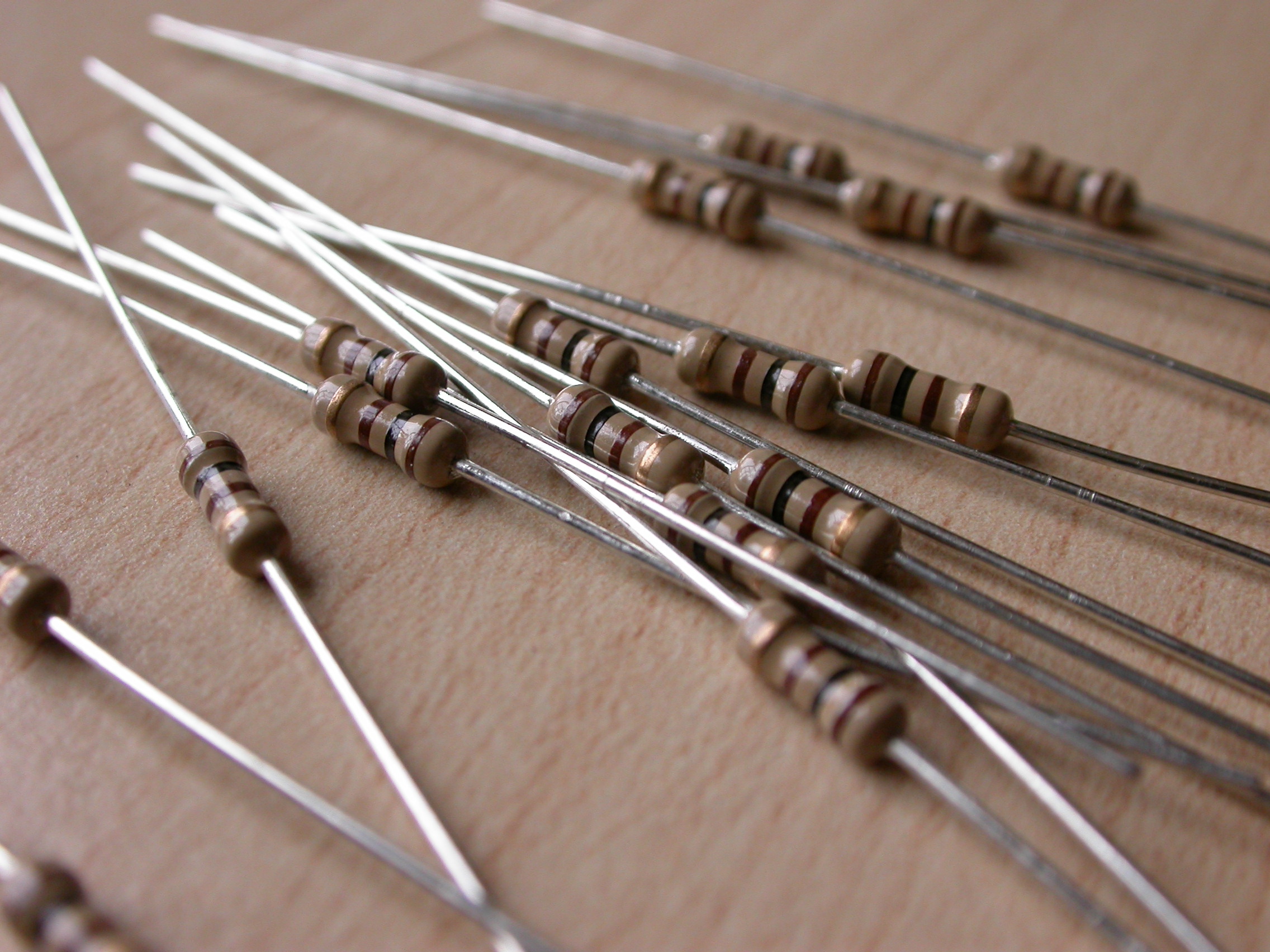

Plating for Ceramic Resistor
ENIG Plating for PCB Boards
Plating for Flex Tapes
Plating for Hydrodynamic Bearing
Plating for Ceramic Resistor

Plating for Ceramic Resistor

Multi-Layer Alloy Plating for functional resistive film. Superior Adhesion over Ceramics, Stable Plating Speed, Excellent Resistance Value

Specifications

Size

1S, 2S, 3S, 5S, 12S

Substrate

Ceramic

Metallization

Ni-Cu Alloy

Thickness

6 - 30 µm

Technical Challenges

Multi-Layered Copper / Nickel Alloy Plating with High Adhesion and Resistance Properties.

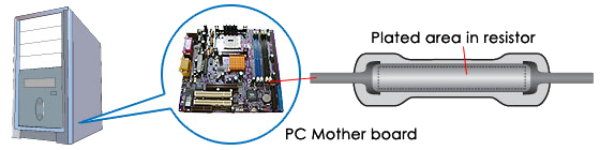

Plated Area in Resistor

Related Pages

Copper Plating Navigation to Copper Plating PVD Navigation to PVD
Unique Plating Technology for Microelectronics

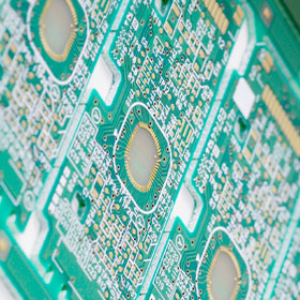

ENIG Plating for PCB Boards

As Electroless Ni-Au Substitute, ENIG Shows More Advantages. Mainly Used in Electronic Products, Wire Bonding and Solder Connections.

Unique Plating Technology Specifications

Substrate

PCB Board, Copper

Metallization

ENIG

Thickness

Au: 0.05 - 0.1 µm
Ni: >6 µm

Technical Challenges

Uneven Plating Surface, Short Lifespan and Treatment for EN Solutions, and Copper Contamination.

High Precision Replenishment Column System Diagram

High Precision Replenishment Column System for good chemical control process

Auto Chemical Analysis and Control System Diagram

Auto Chemical Analysis and Control System for precision chemical control with Cpk above 1.33

Related Pages

ENIG Plating Navigation to ENIG Plating
Plating for Flex Tapes

Plating for Flex Tapes

Reel-to-Reel FPC Conducting Continuous Plating has Broad Prospects for Development of Surface Treatment Technology and Solutions. Developed Electrolytic Tin to Replace Immersion Tin on Flex Tape, it has Better Quality and Reduced Tin Whiskers.

Unique Plating Technology Specifications

Substrate

Polyimide

Metallization

Electrolytic Tin

Thickness

0.2 ~ 0.5 µm

Technical Challenges

Reduced Uneven Plating Surface, Improving Chemical Lifespan and Reduced Copper Contamination.

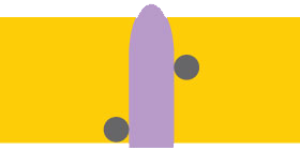

Sn Lump Inside Bump

Sn Lump Inside Bump is < 5 µm

No Whiskers Found More Than 4 Months

No Whiskers Found More Than 4 Months

Related Pages

Tin Plating Navigation to Tin Plating
FPC Reel to Reel Selective Plating

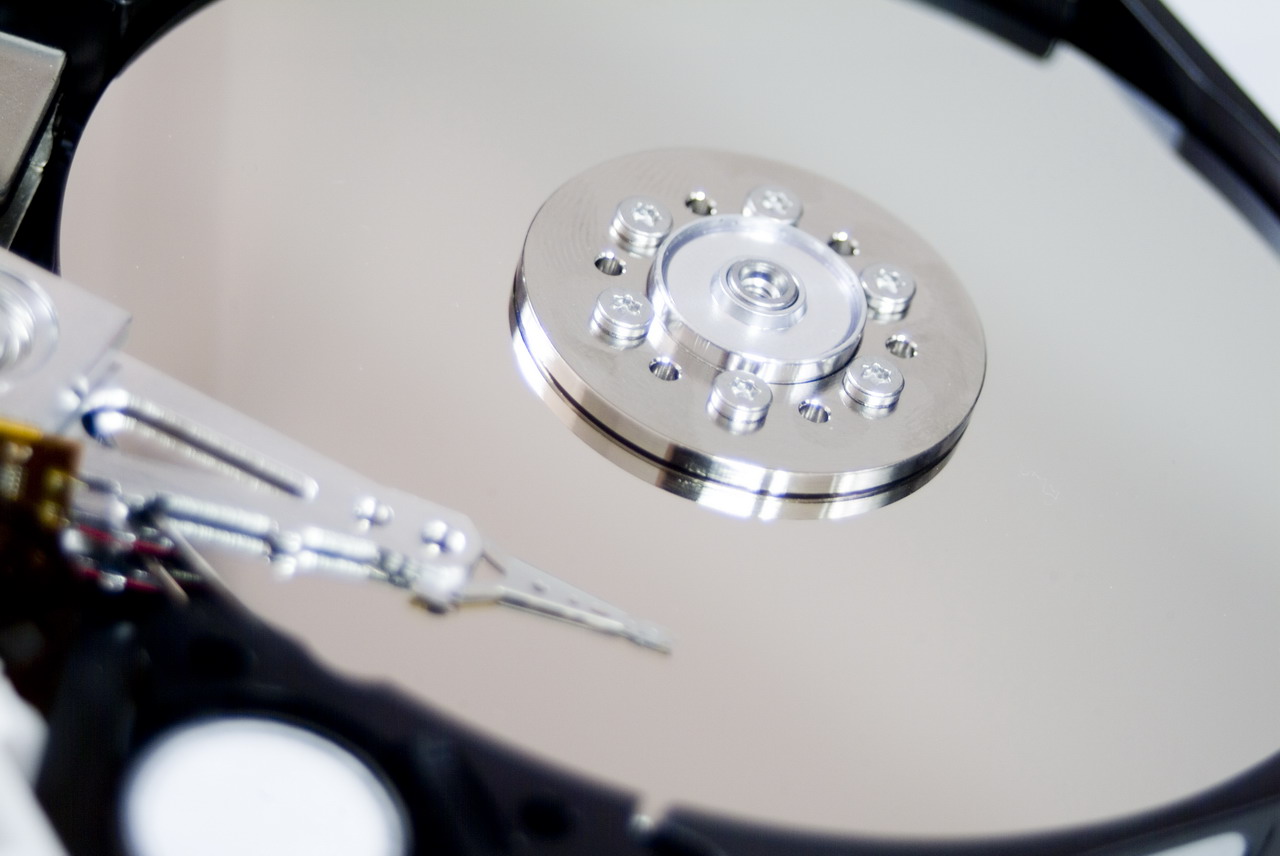

Plating for Hydrodynamic Bearing

Plating Done For Spindle Motor of Computer Hard Disks.

Unique Plating Technology Specifications

Size

0.85", 1.0", 1.8", 2.5", 3.5"

Substrate

Ceramic

Metallization

EN

Thickness

Controlled within 20nm

Technical Challenges

Precise Plating Thickness Controlled in Nano-meter

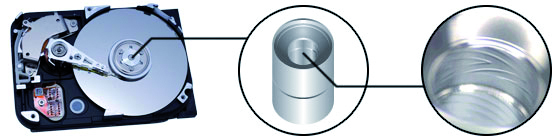

Plated Area

Plated Area

Related Pages

Nickel Plating Navigation to Nickel Plating
