Palladium, pink gold and DLC plating are used in the watch industry, and are applied to watch cases and parts. Palladium is valued as a decorative metal, as well as for its wear and corrosion resistance and its durability. Pink gold is used for its appearance and its wear resistance.
Using PVD Sputtering Technology, it has Good Hardness and Scratch Resistant. Can be Used for Decorative Purposes, Tools, Jewelry and etc.
Substrate
Ti, Stainless Steel
Metallization
Ti-Cu
Sputtering Thickness
Ti: 0.1µm, Cu: 0.3~2µm
Thickness
0.1 - 5µm (±20%)
DLC Hardness
30 - 60GPa
DLC Friction Coefficient
0.01 - 0.05
| Coating Applications | |||||
|---|---|---|---|---|---|
| Coating | Thickness | Hardness | Friction Coefficient | Heat Resistance | |
| TiN | 2~6 µm | 2500 Hv | 0.65 | 600 °C | |
| TiCN | 2~6 µm | 4200 Hv | 0.3 | 400 °C | |
| TiAlN | 2~6 µm | 4500 Hv | 0.07~0.3 | 750 °C | |
| CrN | 2~6 µm | 2500 Hv | 0.2 | 700 °C | |
| DLC | 0.01~2 µm | >2500 Hv | 0.05~0.2 | 250 °C | |
TiC
Uniformly Exhibit a Variety of Colors, Excellent Adhesion
and Good Hardness

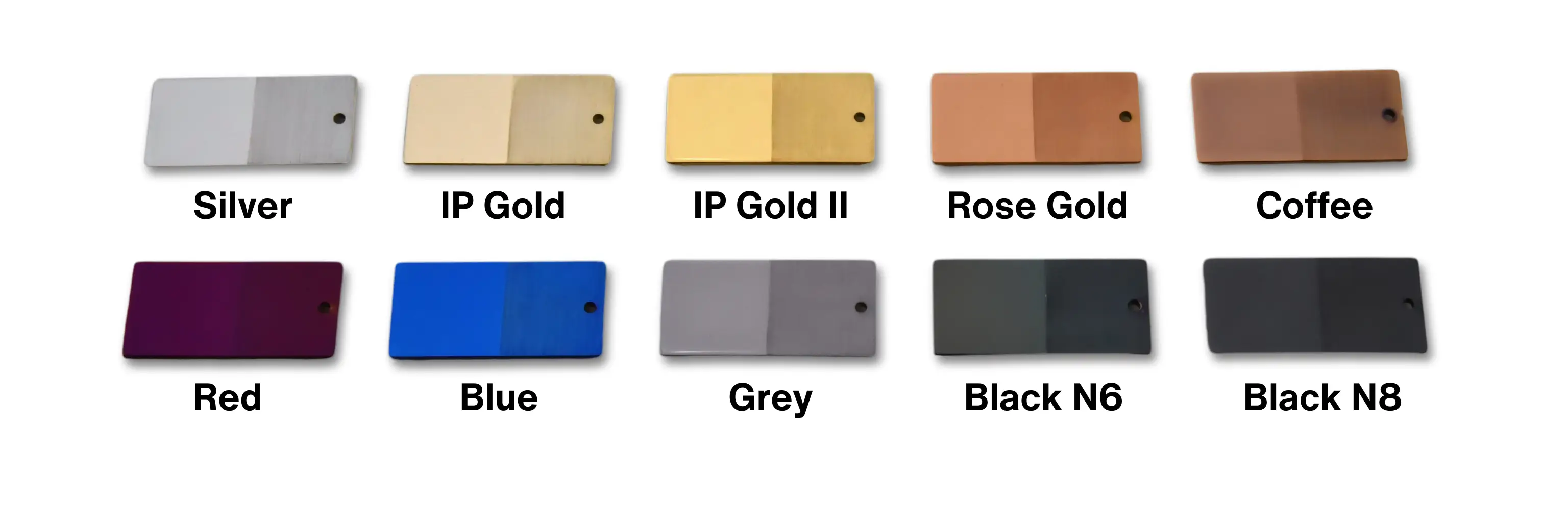

Various Decorative Colors

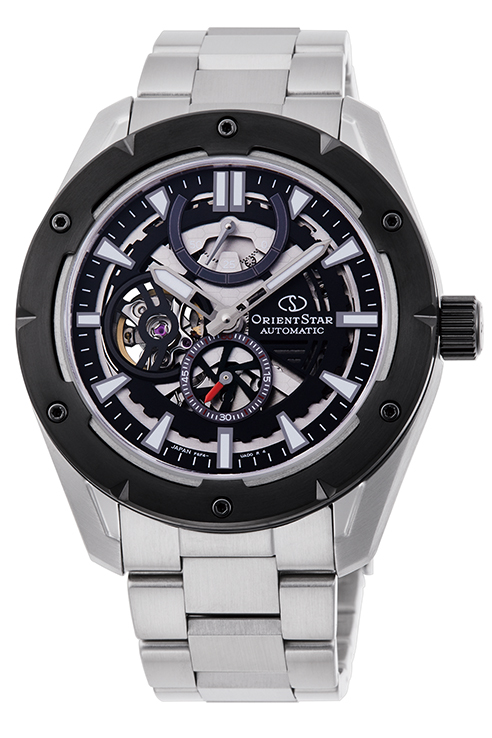

DLC-Diamond Like Carbon Coating
High hardness (>40GPa), Low Friction Coefficient and Good
Wear Resistance
The world's first off-body protector structure Developed in 1975 as the World's First Body Protector. It was developed for its highly Reliable Shock Resistive and Safety feature on Diver's Watch. In 1986, ceramics material was used for the Quartz Models of 100M Diver Watch and characteristics of being light weight, high corrosion-resistant and high hardness.

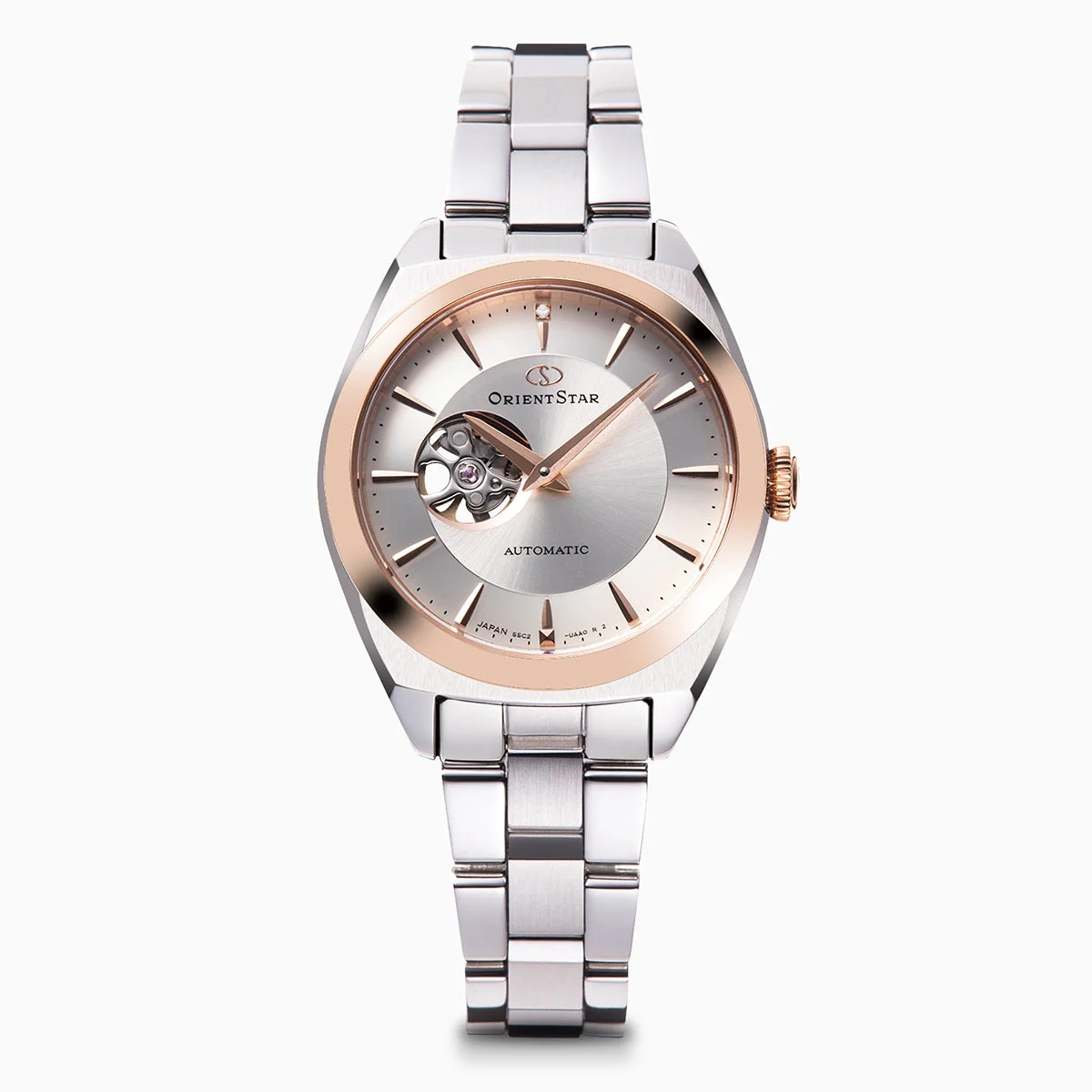

Plating technique using a constant voltage on the case to avoid the double layer and coating roughness.
Substrate
Brass, Stainless Steel, Fe
Metallization
Au, Rh, Ni, Pd, Cu, Pink Gold, Bi-Color Plating
Thickness
2.8 - 3µm
Improved Wear Resistance and Control for Differences in Constant Voltage and Current

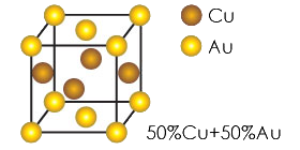

AuCu--Type I superstructure Hardness 400~500Hv
Difference in the Constant Voltage and Current to the Difference in Percentage of Gold to the Thickness of Gold.

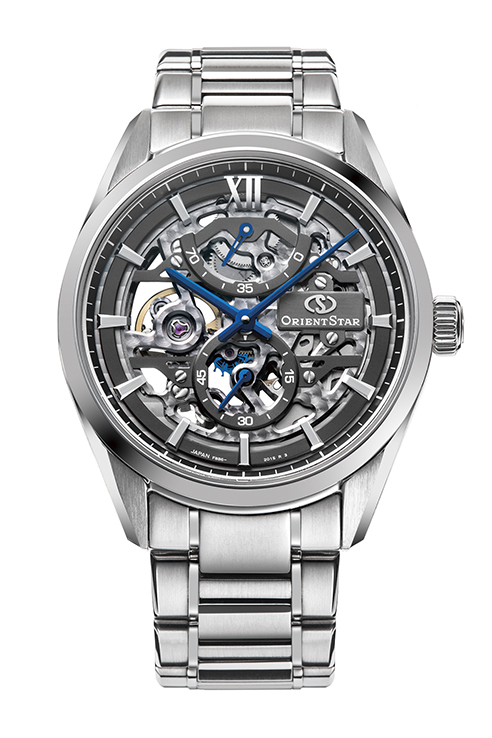

Epson has developed a high hardness AR (Anti-Reflective) multi-layer coating. It has the ability to maintain excellent wear resistance on the surface of sapphire and glass, and at the same time provide anti-fogging film functionality and high transmittance rate of 99%.
Substrate
Glass
Metallization
AR (Anti-Reflective) Coating
Hardness
Higher than Silicon Carbide
Transmittance:
Almost all lights can be transmitted.
Adhesion:
Superior Adhesion to Substrate
Water Contact:
Hydrophobic
Maintain Scratch and Dust Resistance, Adjustments of Reflection and Refraction of light For Long-Term Usage

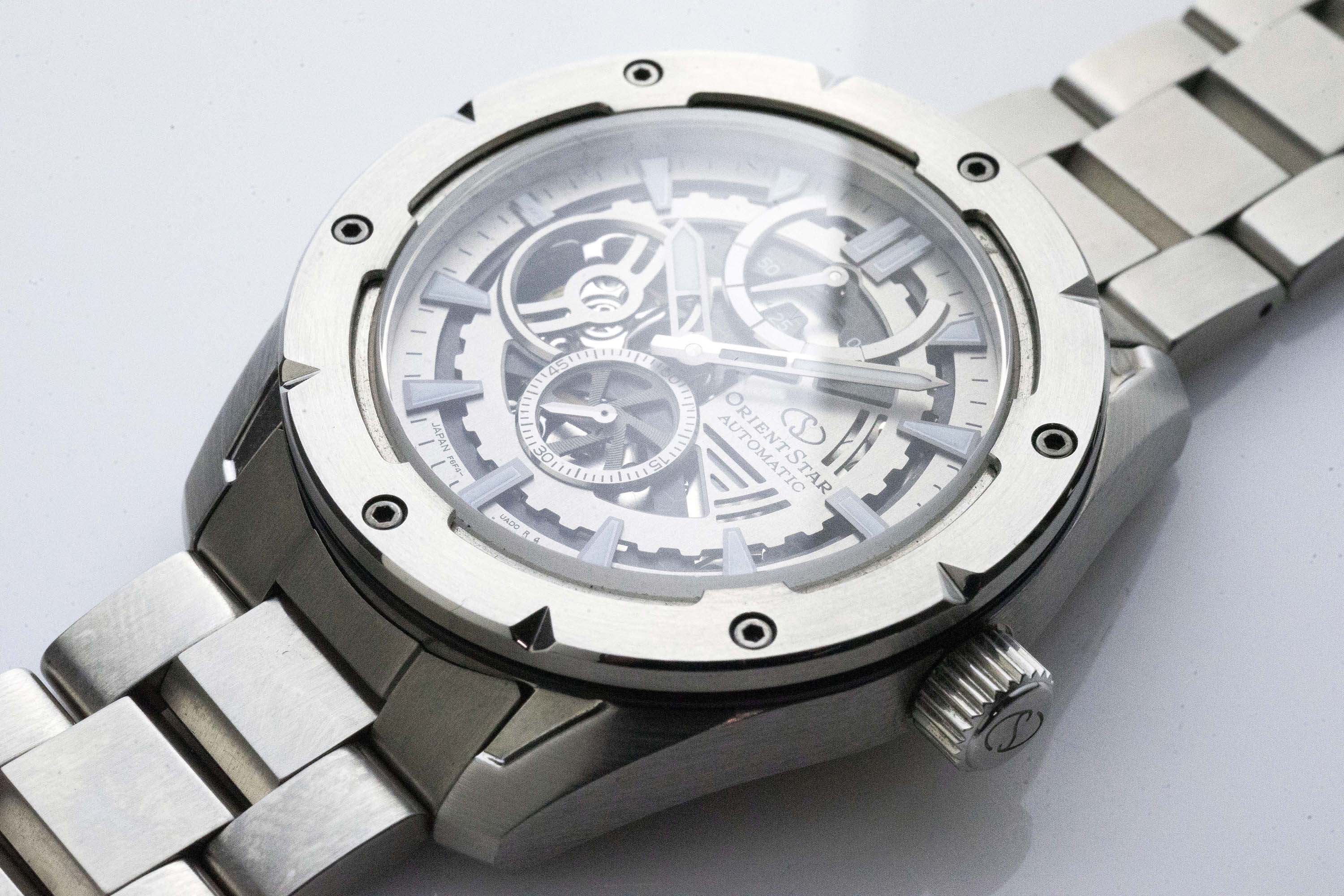

Without AR coating

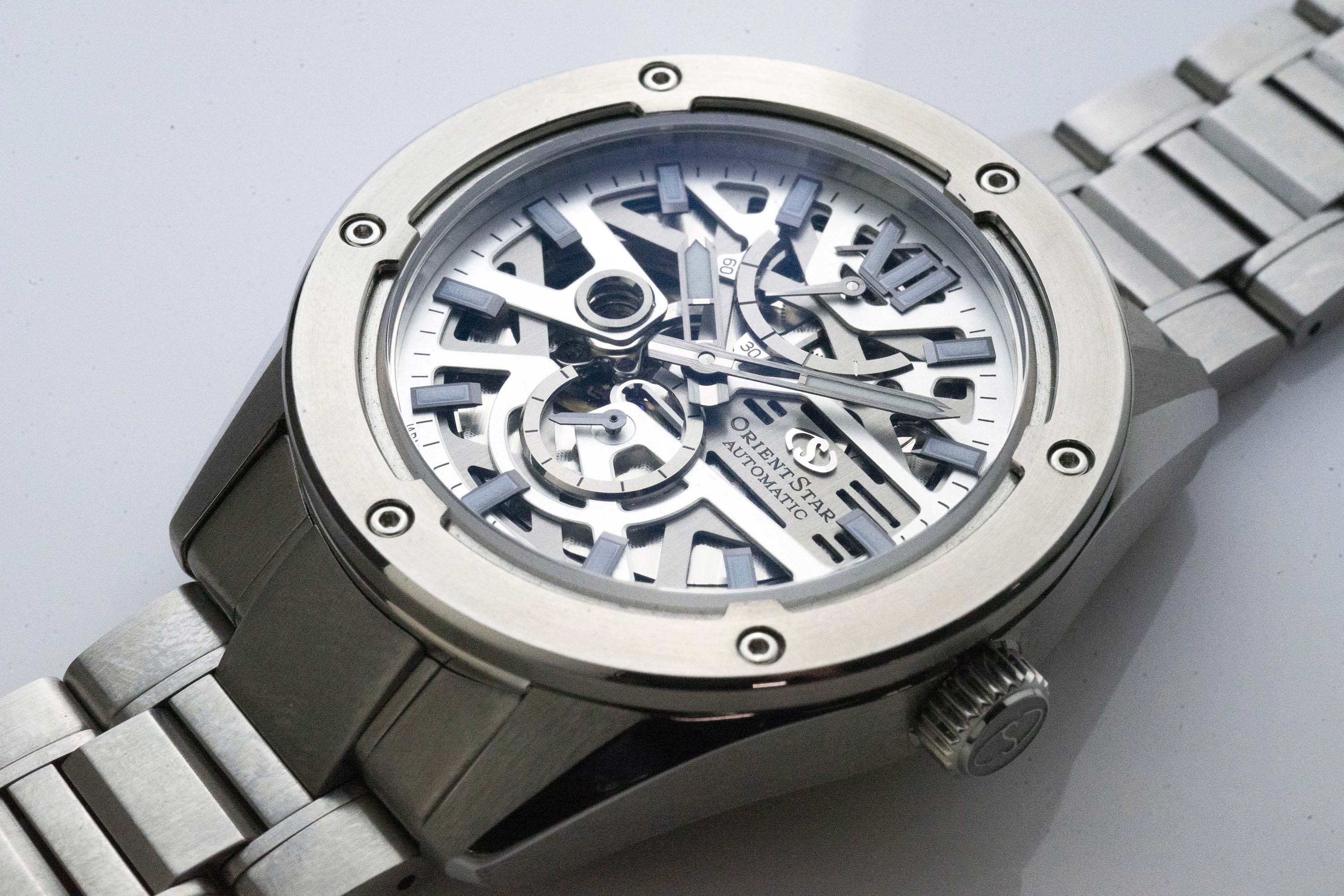

With AR coating
Water Test on Glass Without AR Coating
Water Test on Glass With AR Coating
Au Spot Plating on Flex Tape for Wire Bonding of Watch Parts
Substrate
Flex Tape
Metallization
Au
Thickness
IL = >0.5µm, Non-Critical Area=>0.05µm
Reduced Usage of Gold at Selected Plated Area Electroplating requires portion 0.5μm (0.1% area), while other portion 0.05μm (99.9% area)
