X-Ray Fluorescence Spectrometer
Wire Pull and Ball Shear Tester
X-Ray Fluorescence Spectrometer
Plating/Coating Thickness Measurement
Coating thickness measurement for PCBs, electroplating, connectors, and galvanized coatings, with capabilities to analyse over 35 types of electroplated layers including Au, Ag, Pd, and more, ensuring precise and non-destructive testing for optimal quality control.

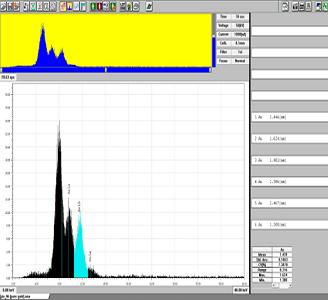

Thickness measurement on Au element of
stainless-steel base sample with gold
plating.
Thickness measurement on Au element of
stainless-steel base sample with gold
plating.
Wire Pull and Ball Shear Tester

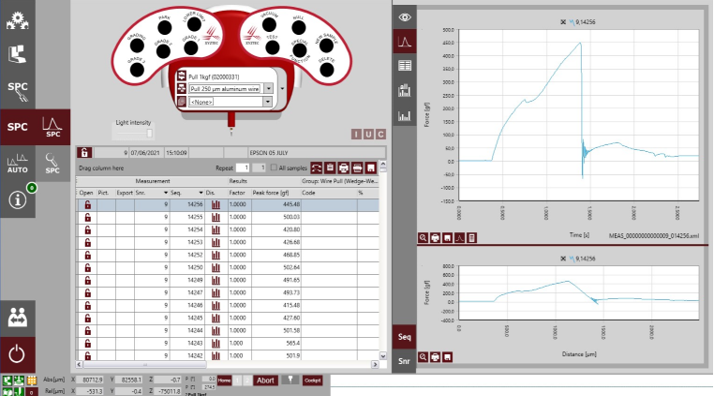

Wire Pull and Shear Strength Measurement
Measurement of mechanical bond strength by pull test and shear test.
Specifications
Sensors:
Pull and rotating shear
Pull Sensor:
100gf and 1kgf
Rotating Shear:
100gf and 5kgf
Stage:
X-370mm, Y-168mm, 168mm
Result of thickness measurement in µm unit.
